-15%
H5000 ANALOGUE TWA 360 – B&G
Le prix initial était : 828.00€.700.00€Le prix actuel est : 700.00€. TTC

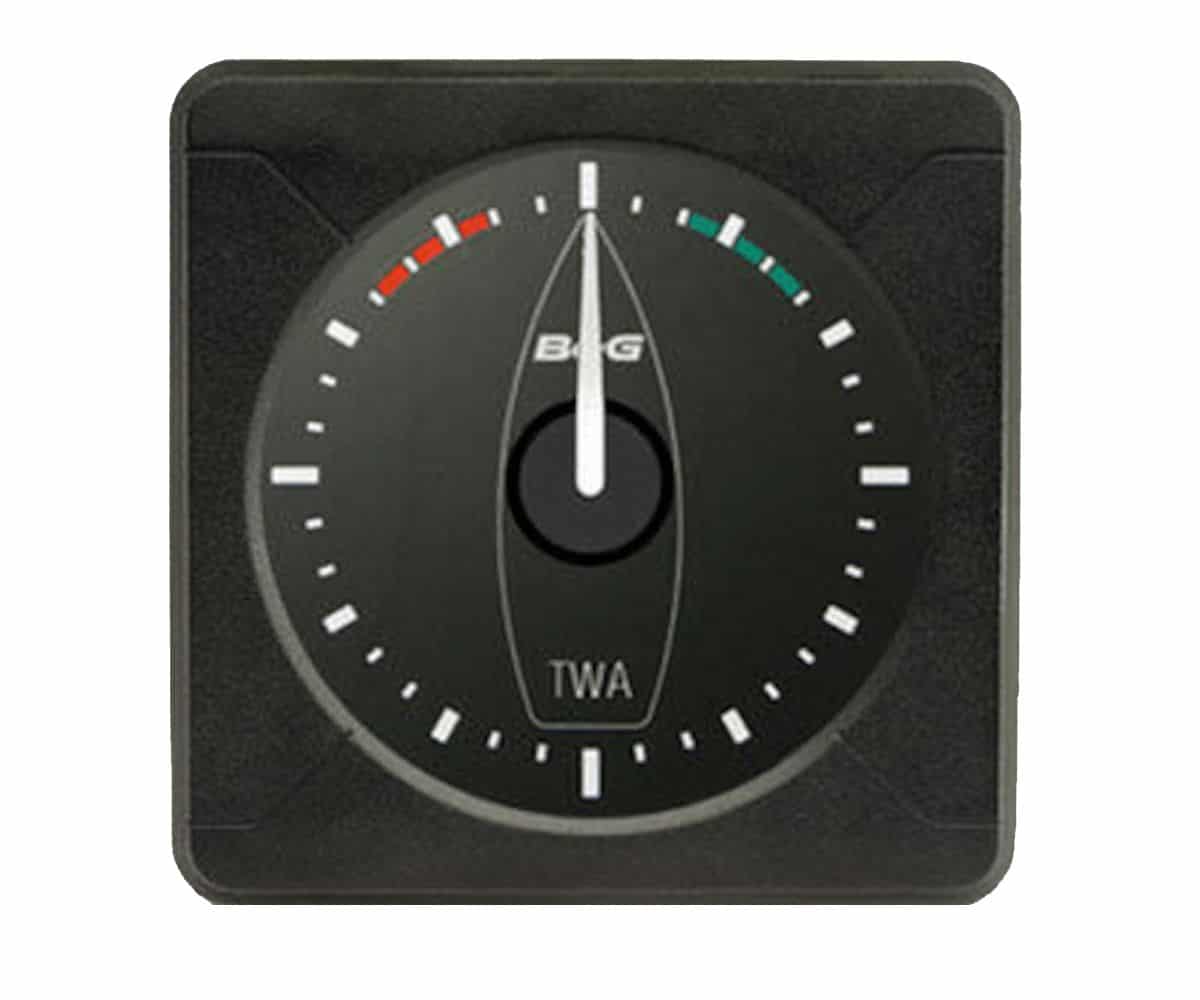

H5000/H3000 Analogue Indicator. True Wind Angle (+/- 180 degrees).
* Pour les articles en stock via Chronopost
Description
Description
- Conception à montage frontal à profil bas
- Option « Daisy-chain » pour une installation facile
- Éclairage nocturne lumineux
- Construction mécanique à haute intégrité comprenant une fenêtre d’affichage en verre trempé
- Compatible avec les systèmes H5000 et H3000
Données techniques
Approvals
| Compliance | IEC/EN 60945 |
|---|
Connectivity
| N2K PGNs | 130306, 128259, 129026 |
|---|---|
| NMEA 2000 | 2 x NMEA2000 Simnet port, 2 LEN |
Display
| Backlight Color | White |
|---|
Electrical
| Recommended Fuse Rating | 5A |
|---|---|
| Supply Voltage | 12V DC (10-16V DC) |
| Humidity | Up to 95% RH |
Environment
| Operating Temperature Range | -10 to +55ºC (+14 to 131ºF) |
|---|---|
| Waterproof rating | IP67 |
MFD
| Compass Safe Distance – Metric, imperial | 200mm (7.9″) |
|---|
Physical
| Dimensions (W x H x D) | 115 x 115 x 68mm (4.5 x 4.5 x 2.7″) |
|---|---|
| Mounting Type | Flush |
| Weight | 0.5 kg (1.1 lbs) |
Other
| Warranty Period | 2 Years |
|---|
Dans la boîte:
-
H5000/H3000 ANALOGUE BEZEL (BLACK) – BGH231021
-
H5000/H3000 SUN COVER (ANALOGUE) – BGH234017
-
B&G Simnet cable 0.35m (RA-RA) – BGH301035
Informations complémentaires
| Poids | 2.7 kg |
|---|---|
| Dimensions | 13.3 × 12.1 × 14 cm |
| Marque |
